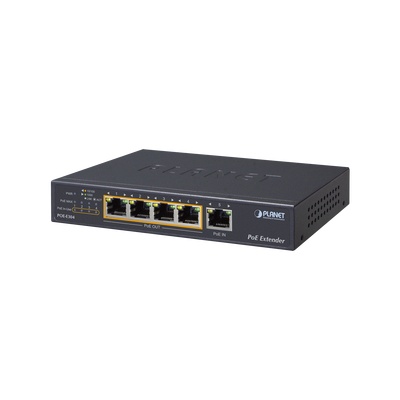

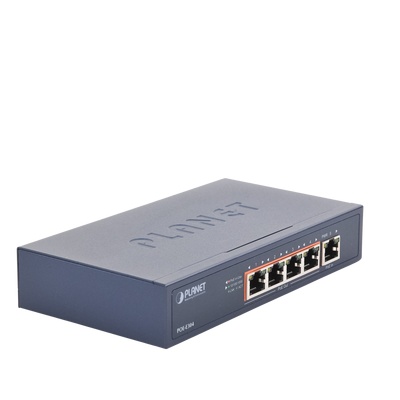

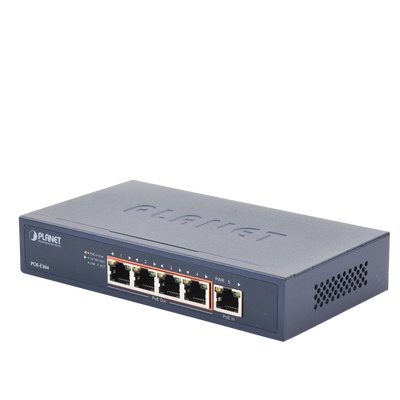

PLANET POE-E304 Extensor Ultra PoE de 65 Watts Con 4 Puertos Gigabit de Salida 802.3 af/at
$1,444.84
(incluye IVA)
$2,001.70
Costo de envío no incluído, enviamos a todo Mexico. Sujeto a Cobertura.
Descripción
POE-E304 PLANET Extensor Ultra PoE de 65 Watts Con 4 Puertos Gigabit de Salida 802.3 af/at
 | Instalación Plug and Play El POE-E304 Se utiliza entre el equipo de alimentación (PSE) y un dispositivo alimentado (PD) ofreciendo una solución rentable y rápida para duplicar el rango estándar de PoE de 100 a 200 metros. |
| Especificaciones Fisicas | |
|---|---|
| Puertos de Red | PoE In Port 1 x 10/100/1000BASE-T Ethernet with Ultra PoE “Data DC” in auto MDI/MDI-X auto-negotiation RJ45 connector PoE Out Port 4 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE “Data DC” out auto MDI/MDI-X auto-negotiation RJ45 connector |
| Negociación | 10/100/1000Mbps |
| Switch | Store-and-Forward |
| Tabla MAC Address | 2K |
| Data Buffer | 2Mbits |
| Switch Fabric | 10Gbps |
| Switch Throughput | 7.44Mpps 64 bytes |
| Jumbo Frame | 9K |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| LED Indicators | PoE In Port 10/100 LNK/ACT (Orange) 1000 LNK/ACT (Green) PoE Out Port 1 to Port 4 10/100 LNK/ACT (Orange) 1000 LNK/ACT (Green) PoE-in-Use (Orange) PoE Max. (Orange) |
| Protección | ESD (Ethernet): 6KV Surge (EFT for power): 2KV |
| Enclosure | Metal |
| Instalación | Desktop/Wall mountable |
| Dimenciones (W x D x H) | 160 x 92.5 x 28 mm |
| Peso | 370g |
| Requerimientos Energeticos | PoE In: IEEE 802.3bt or 4-pair 802.3at PoE compliant with voltage within 50V-56V DC External DC: 5056V DC |
| Consumo Energetico | 4 watts/13.7BTU (System on with PoE input) 6 watts/20.6BTU (Ethernet full loading without PoE function) 60 watts/205.9BTU (Full loading with PoE function) |
| Cableado | 10BASE-T: 4-pair UTP Cat5 up to 100m (328ft) 100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft) 1000BASE-T: 4-pair UTP Cat5e 6 up to 100m (328ft) EIA/TIA-568 100-ohm STP (100m 328ft) |
| Power over Ethernet | |
| PoE | PoE In Port Ultra Power over Ethernet end-span/mid-span PD class 4 PD Per PoE Out Port IEEE 802.3at Power over Ethernet Plus end-span PSE IEEE 802.3af Power over Ethernet end-span PSE |
Alimentación PoE No incluye Fuente de voltaje | PoE In Port 5056V DC max. 60 watts Per PoE Out Port 4455V DC max. 30.8 watts |
| Configuración de Pines | PoE In Port 1/2 () 3/6 (-); 4/5 () 7/8 (-) or 1/2(-) 3/6(); 4/5() 7/8(-) Per PoE Out Port 1/2 () 3/6 (-) end-span (Type A) |
| Presupuesto de Alimentación PoE | 50 watts (max.) Ultra PoE input 20 watts (max.) IEEE 802.3at PoE input |
| Standard Conformance | |
| Regulatory Compliance | FCC Part 15 Class A CE |
| Standard Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3x Flow Control |
| Environment | |
| Operación | Temperature: 0 50 degrees C Relative Humidity: 5 95% (non-condensing) |
| Almacenamiento | Temperature: -10 70 degrees C Relative Humidity: 5 95% (non-condensing) |
