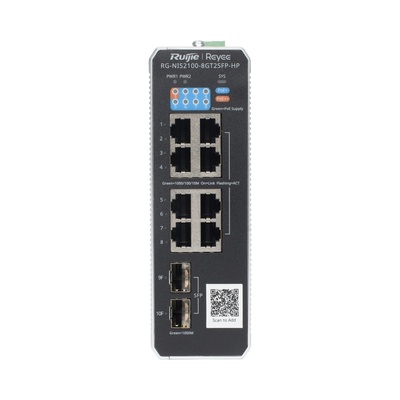

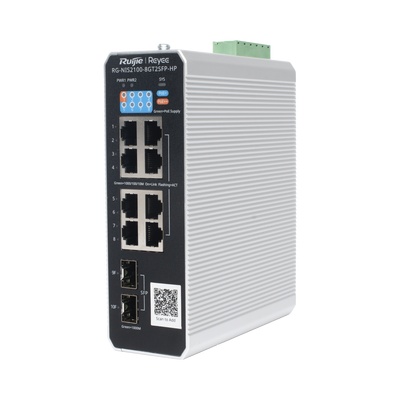

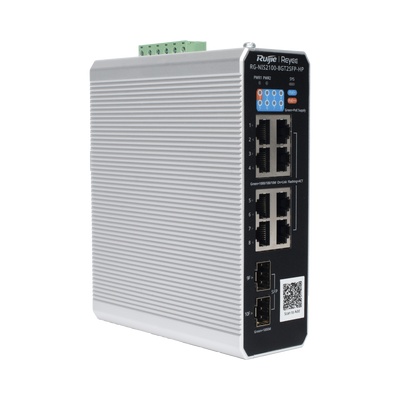

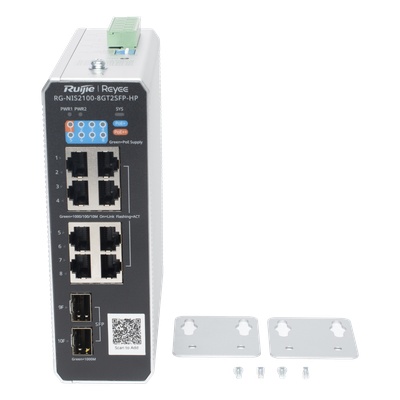

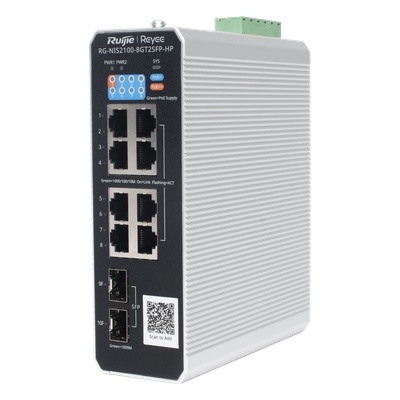

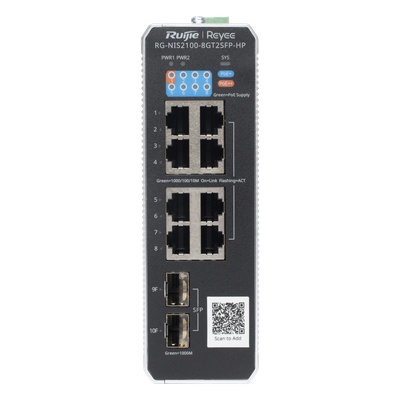

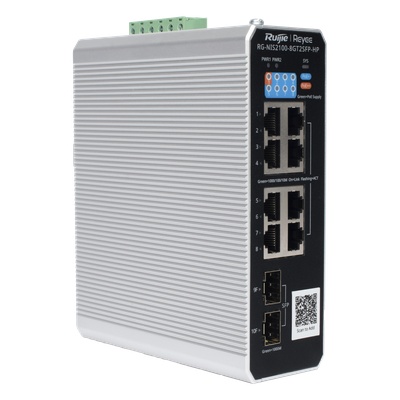

RUIJIE RG-NIS2100-8GT2SFP-HP Switch Industrial PoE+ hasta 300 watts Ideal para temperaturas Extremas y proteccion contra descargas 1 puerto PoE++ 60W y 7 puertos PoE+ 30W 2 SFP Uplink

Descripción

RG-NIS2100-8GT2SFP-HP RUIJIE Switch Industrial PoE+ hasta 300 watts Ideal para temperaturas Extremas y protección contra descargas 1 puerto PoE++ 60W y 7 puertos PoE+ 30W 2 SFP Uplink

Key Specification

• Number of 1 Gbps SFP Ports: 2
• Number of 10/100/1000BASE-T Ports: 8
• Layer: Layer 2
• Switching Capacity: 20 Gbps
• Forwarding Rate: 14.8 Mpps
• MAC Address Table Size: 8000
• Max. Number of VLANs: 16
• Dimensions (W x D x H): 50 mm x 155 mm x 130 mm (1.97 in. x 6.10 in. x 5.12 in.)
• Net Weight: 0.79 kg (1.74 lbs)
• Mean Time Between Failure (MTBF): > 200 000 hours
• Warranty: 5 years
• Port Surge Protection: Common mode: 6 kv
• Certification: CE

---

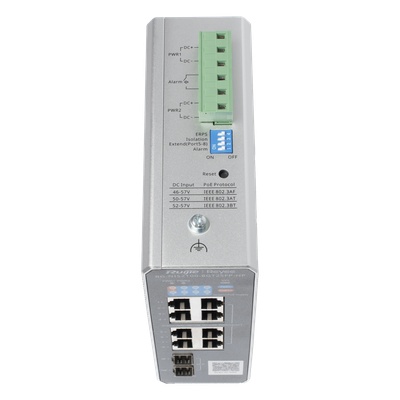

Espesificaciones de Energia

Switch DC input:

Rated voltage range: 46 V DC to 57 V DC

Rated current range: 7 A

Consumo MIN. 12 W (sin carga PoE)

Consumo MAX. 312 W (con carga PoE)

Fuente RG-NIS-PA240-54 (AC input):

Rated input voltage: 100 V AC to 240 V AC 50/60 Hz

Maximum input voltage: 90 V AC to 264 V AC 47 Hz to 63 Hz

Rated input current: 3.5 A Output

Rated output voltage: 54 V DC

Maximum output current: 4.4 A

Fuente RG-NIS-PA120-54 (AC input):

Rated input voltage: 100 V AC to 240 V AC 50/60 Hz

Maximum input voltage: 85 V AC to 264 V AC 47 Hz to 63 Hz

Rated input current: 1.5 A Output

Rated output voltage: 54 V DC

Maximum output current: 2.5 A
