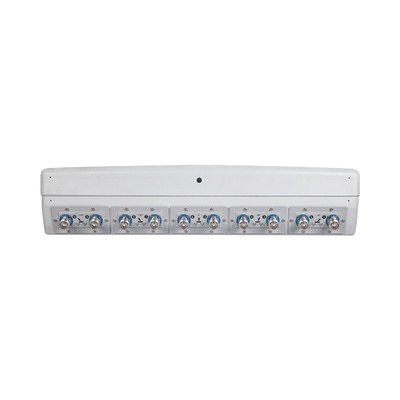

ANDREW 5NPX1006F Antena Multi Haz de 10 Puertos 10x 1710?2180 MHz 5x 10-14° HPBW
Descripción
5NPX1006F ANDREW Antena Multi Haz de 10 Puertos 10x 1710?2180 MHz 5x 10-14° HPBW
| Electrical Specifications |
| Frequency Band MHz | 1710–1920 | 1920–2180 |
|---|---|---|
| Gain dBi | 21.7 | 22.3 |
| Beamwidth Horizontal degrees | 13 | 12 |
| Beamwidth Vertical degrees | 11.9 | 10.9 |
| Beam Tilt degrees | 6 | 6 |
| USLS (First Lobe) dB | 14 | 16 |
| Front-to-Back Ratio at 180° dB | 32 | 34 |
| CPR at Boresight dB | 10 | 10 |
| Isolation Same Beam dB | 25 | 25 |
| VSWR Return Loss dB | 1.43 15.0 | 1.43 15.0 |
| PIM 3rd Order 2 x 20 W dBc | -150 | -150 |
| Input Power per Port maximum watts | 300 | 300 |
| Polarization | ±45° | ±45° |
| Impedance | 50 ohm | 50 ohm |
