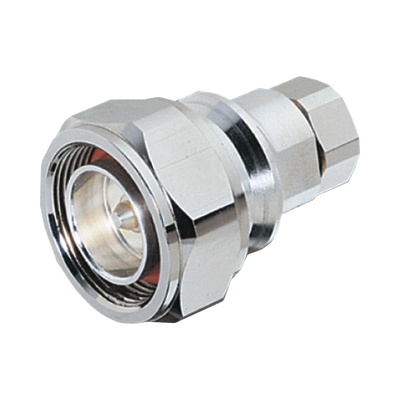

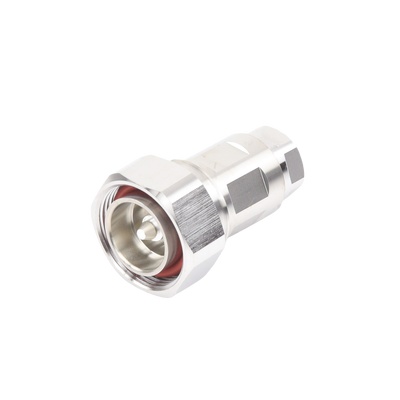

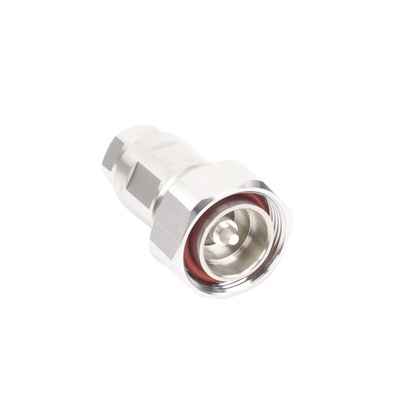

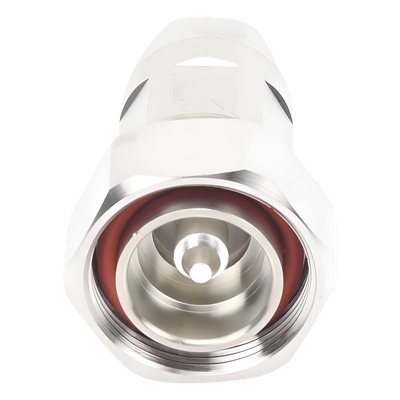

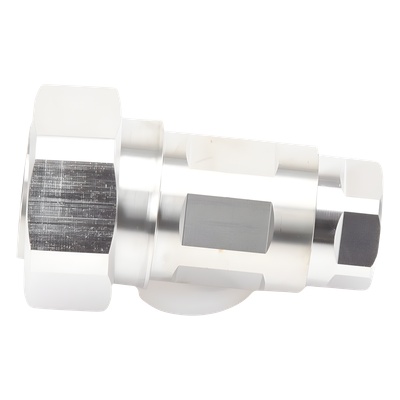

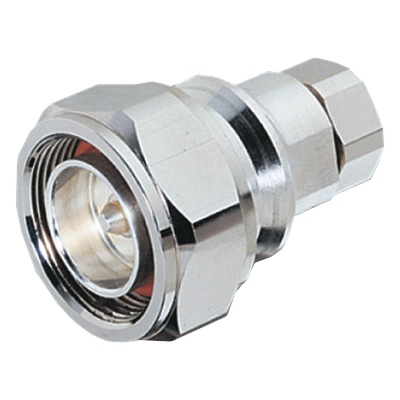

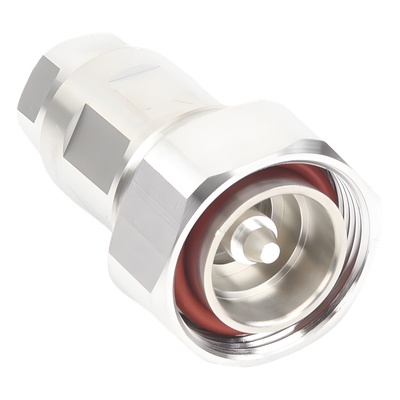

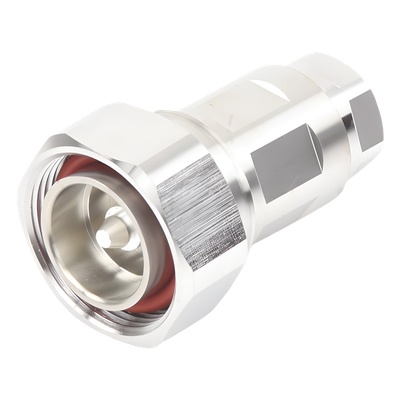

ANDREW / COMMSCOPE F4PDMV2-C Conector DIN 7/16 Macho Para Cable FSJ4-50B
$768.01
(incluye IVA)
$917.51
Costo de envío no incluído, enviamos a todo Mexico. Sujeto a Cobertura.
Descripción
F4PDMV2-C ANDREW / COMMSCOPE Conector DIN 7/16 Macho Para Cable FSJ4-50B
<-- Seccin de especificaciones elctricas --><-- Seccin de informacin adicional --><-- Enlace a informacin adicional --><-- Separador -->
Electrical Specifications
- Connector Impedance: 50 ohm
- Operating Frequency Band: 0 – 7500 MHz
- Average Power at Frequency: 1.0 kW 900 MHz
- Cable Impedance: 50 ohm
- 3rd Order IMD typical: -120 dBm 910 MHz
- 3rd Order IMD Test Method: Two 43 dBm carriers
- RF Operating Voltage maximum (vrms): 884.00 V
- dc Test Voltage: 2500 V
- Outer Contact Resistance maximum: 1.50 mOhm
- Inner Contact Resistance maximum: 0.80 mOhm
- Insulation Resistance minimum: 5000 MOhm
- Peak Power maximum: 15.60 kW
- Insertion Loss typical: 0.05 dB
- Shielding Effectiveness: -110 dB
Additional Information
- Insertion Loss Formula: 0.05√¯freq (GHz) (not applicable for elliptical waveguide)
Para cables coaxiales LPSF-450B FSJ4-50B
Herramientas recomendadas:
MCPT-1412 -- Herramienta manual para preparar cable Heliax.
