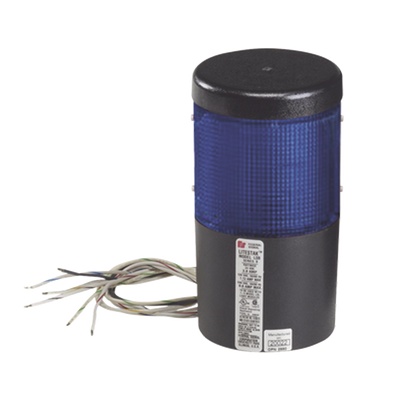

FEDERAL SIGNAL INDUSTRIAL LSLD024-B Modulo de luz LED litestak 24 Vcc Azul

FEDERAL SIGNAL INDUSTRIAL
FEDERAL SIGNAL INDUSTRIAL
Código producto - SKU LSLD024-B
Este producto ya no está disponible en tu tienda.

Descripción

LSLD024-B FEDERAL SIGNAL INDUSTRIAL Módulo de luz LED litestak 24 Vcc Azul

FEATURES

Federal Signal’s Litestak® Model LSLD modular indicator light system allows the user to combine up to five interchangeable lamp units with a base power unit. Modules are sold separately for a truly customized indicator.
LED light output coordinates with the module’s impact-resistant polycarbonate lensing. LED lamps consume less power  operate at a lower temperature and are remarkably resistant to vibration which makes them perfect for use in heavyduty  high vibration applications.
An optional Sound Module (Model LSH on page 46 and 47) can be added to the top of the Litestak column to create a dual purpose audible/visual status indicating signal. In applications where a single loud tone is all that is necessary the LSH piezo-electric horn is a perfect audible addition.
Litestak is a versatile system that allows the user to select either steady burn or flash. A flasher is included on the 120VAC LSB unit only but can be purchased separately for 24VDC models. The Litestak base unit can be either surface mount or 3/4-inch NPT pipe mount. All Litestak models should be mounted base down.



SPECIFICATIONS

Voltage24VDC
 120VAC 50/60 Hz
Operating Current80 mA at 24VDC
 45 mA at 120VAC 50/60Hz
Light Source/Lamp StyleLED Array
Lamp Life50 000 Hours
Operating Temperature Minimum0 °F
Operating Current120 °F
Enclosure RatingType 1
Dome ColorsAmber
 Blue
 Clear
 Green
 Red
Net Weight LSLD0.45 lbs
Shipping Weight LSLD0.75 lbs
LSLD Height3.25
LSB Height3.25
LSLD Diameter3.93
LSB Diameter3.93

06-09-2025 15:48:08 SSN20 U-16-Gn 252645

Detalles

SKU
LSLD024-B
Peso
0.5 kg
