MICROLAB DN-94FE SEPARADOR 15dB (30:1) Tap 350-5930MHz 500W -161dBc 4.3-10 IP67 .

Descripcin

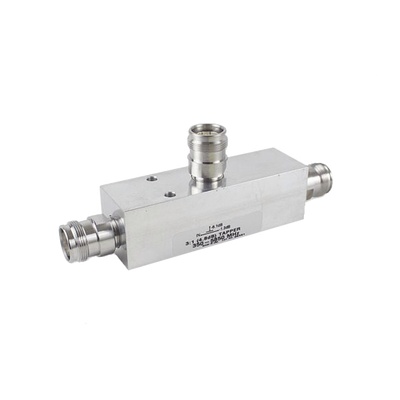

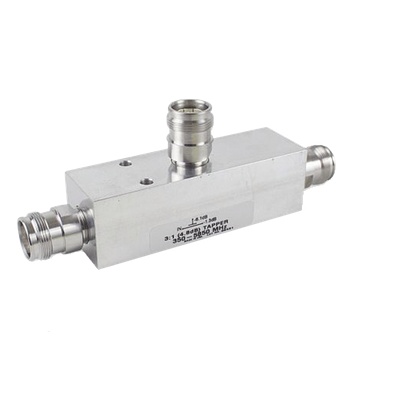

Microlab DN-x4FE series of Tappers unevenly split high power cellular signals in fixed ratios from 1000:1 to 2:1 with minimal reflections or loss over the key wireless bands in the range 350 5 930 MHz (there is no coupling 1550 to 1650 MHz). The innovative asymmetric design ensures an excellent input VSWR and coupling flatness across the specified bands even down to a 2:1 split.

The lightweight design allows easy attachment to a wall using the supplied bracket. Designed with only a few solder joints and an air dielectric loss is minimized and reliability enhanced. See DN-x4FN and DN-x4FD series for similar Tappers with N and 7/16 connectors.
