Descripción

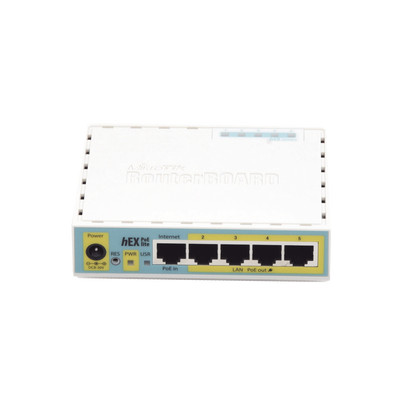

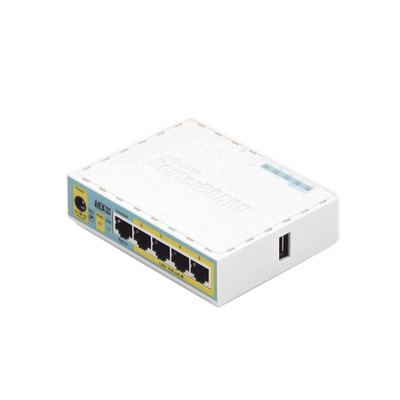

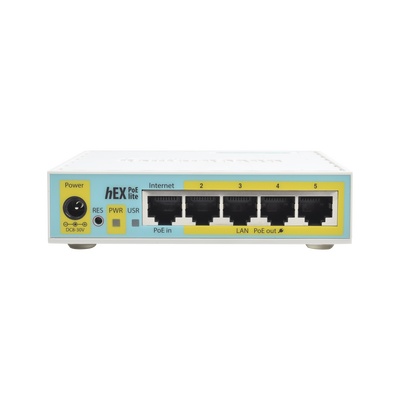

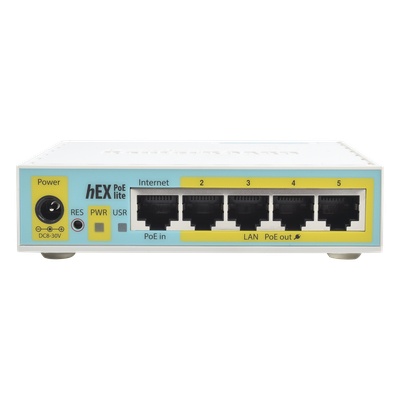

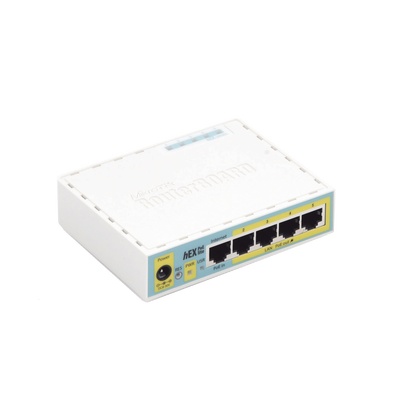

RB750UPR2 MIKROTIK (hEX PoE LITE) RouterBoard 5 Puertos Fast Ethernet 4 con PoE Pasivo 1 Puerto USB
hEX PoE Lite
hEX PoE Lite es un pequeño router de Ethernet de cinco puertos en una caja de plástico que tiene un puerto USB 2.0 y salida PoE.
Puertos 2-5 pueden alimentar otros dispositivos capaces PoE (Pasivo) con la misma tensión que se aplica a la unidad. Menos adaptadores de corriente y cables de qué preocuparse La corriente máxima es 1A por puerto puertos Ethernet están blindados.
Es economico pequeño y fácil de usar. Con su diseño compacto y aspecto limpio que se inserta perfectamente en cualquier entorno SOHO
1 año de garantía.

Especificaciones Generales
Detalles |
---|
Codigo del Producto | RB750UPr2 |
Arquitectura | MIPS-BE |
CPU | QCA9531 |
Cantidad de Nucleos CPU | 1 |
Frecuencia del CPU | 650 MHz |
Diemnsiones | 113x89x28mm |
Nivel de Licencia | 4 |
Sistema Operativo | RouterOS |
Memoria RAM | 64 MB |
Almacenamiento | 16 MB |
Tipo de Almacenamiento | FLASH |
Temperatura de operacion | -30 70 C |
Alimentación
Detalles |
---|
Consumo energetico | 3W |
Fuentes de alimentacion | 2 (DC jack PoE-IN) |
Entrada PoE | PoE Pasivo |
Voltaje de entrada jack | 8-30 V DC |
Voltaje de entrada PoE | 8-30 V DC |
Salida PoE | PoE Pasivo |
Ethernet
Detalles |
---|
Puertos Ethernet | 5 x 10/100 Mbps |
Perifericos
Details |
---|
Numero de puertos USB | 1 |
Reinicio de energia USB | Si |
Tipo de slot USB | USB tipo A |
Other
Details |
---|
Monitor Actual | Si |
Monitor de temperatura PCB | Si |
Monitor de Voltaje | Si |
Resultado de pruebas de Ethernet
RB750UPr2 | QCA9531 (650Mhz) 100M all port test |
Mode | Configuration | 1518 byte | 512 byte | 64 byte |
kpps | Mbps | kpps | Mbps | kpps | Mbps |
Bridging | none (fast path) | 40.6 | 493.0 | 117.4 | 480.9 | 217.0 | 111.1 |
Bridging | 25 bridge filter rules | 40.6 | 493.0 | 70.1 | 287.1 | 70.9 | 36.3 |
Routing | none (fast path) | 40.6 | 493.0 | 117.4 | 480.9 | 200.8 | 102.8 |
Routing | 25 simple queues | 40.6 | 493.0 | 79.6 | 326.0 | 90.8 | 46.5 |
Routing | 25 ip filter rules | 40.6 | 493.0 | 42.2 | 172.8 | 43.2 | 22.1 |
- All tests are done with Xena Networks specialized test equipment (XenaBay) and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30 second attempts with 0 1% packet loss tolerance in 64 512 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU but because board interface configuration was maxed out
- Test results show device maximum performance and are reached using mentioned hardware and software configuration different configurations most likely will result in lower results

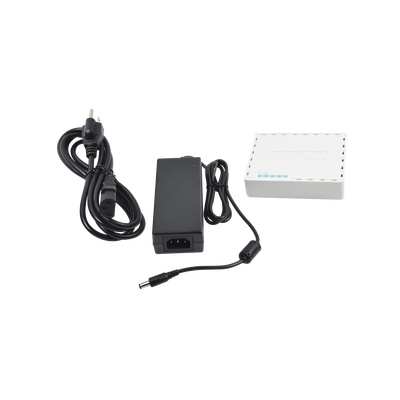

Partes Incluidas
Imagenes meramente ilustrativas
