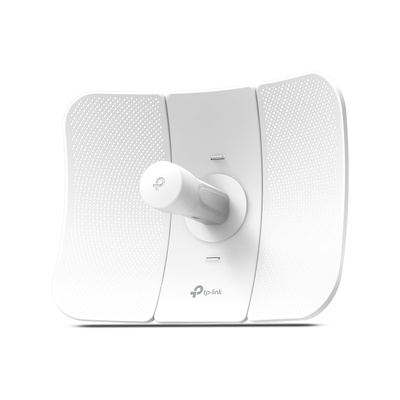

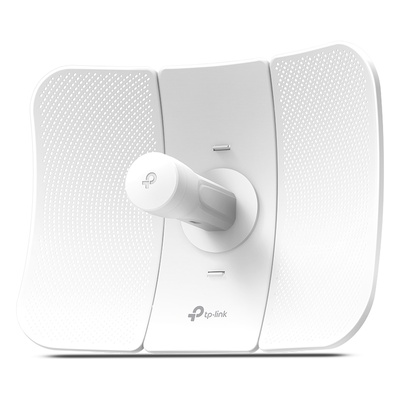

TP-LINK CPE605 CPE de Exterior de 5 GHz a 150Mbps Antena direccional de 23dBi potencia de 23 dBm PoE pasivo
$1,332.69
(incluye IVA)
$1,610.21
Costo de envío no incluído, enviamos a todo Mexico. Sujeto a Cobertura.
Descripción
CPE605 TP-LINK CPE de Exterior de 5 GHz a 150Mbps Antena direccional de 23dBi potencia de 23 dBm PoE pasivo
<-- Seccin de caractersticas --> <-- Seccin de caractersticas inalmbricas --> <-- Seccin de caractersticas de software --> <-- Seccin de caractersticas del adaptador PoE --> <-- Seccin de otros --> <-- Separador -->
CARACTERSTICAS DE HARDWARE
- Procesador: Qualcomm 560MHz CPU MIPS 74Kc
- Memoria: 64MB DDR2 RAM 8MB Flash
- Interface: 1 10/100Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button
- Fuente de Alimentacin: Passive Power over Ethernet via LAN (4 5pins; -7 8pins) Voltage range: 16-27VDC
- Dimensiones (W X D X H): 350 x 255 x 207 mm (13.8 x 10.0 x 8.1 in.)
- Ganancia de Antena: 23dBi
- Cobertura de Antena: 7(Azimuth) 10(Elevation)
- Proteccin: 15KV ESD Protection 6KV Lightning Protection
- Cercado: Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design
CARACTERSTICAS INALMBRICAS
- Estndares Inalmbricos: IEEE 802.11a/n
- Protocolo Propietario: TDMA Mode (with Pharos MAXtream enabled)
- Velocidades Inalmbricas: Up to 150Mbps (40MHz Dynamic) Up to 72.2Mbps (20MHz Dynamic) Up to 36.1Mbps (10MHz Dynamic) Up to 18.05Mbps (5MHz Dynamic)
- Frecuencia: 5.155.85GHz
- Potencia de Transmision: Max. 23dBm (Adjustable power by 1dBm)
CARACTERSTICAS DE SOFTWARE
- IPv6: Yes
- Configuracion De Red: WAN: Static/Dynamic/PPPoE/L2TP/PPTP LAN: Static/Dynamic/DHCP Forwarding: ALG/UPnP/Virtual Server/Port Trigger Security: SPI Firewall/ Ping Forbidden/DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding
- Configuraciones Inalmbricas: Pharos MAXtream TDMA Technology Selectable Channel Width: 5/10/20/40MHz Auto Channel Selection Transmit Power Control Dynamic Frequency Selection(DFS) WDS Enable/Disable Security: WPA/WPA2 WPA-PSK/WPA2-PSK (AES/TKIP) Encryption 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging(AP Mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
- Administracin: Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server
- Herramientas de sistema: Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute
- Optimizaciones a Nivel de Sistema: Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog
POE ADAPTER FEATURES
- Dimensions(W x D x H): 85.843.929.7 mm
- Interfaces: 1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power Data) 1 10/100Mbps Shielded Ethernet Port (Data)
- Botn: Remote Reset Button
- Power Status LEDs: Green
- Input: 100-240VAC 50/60Hz
- Output: 24VDC 0.6A Max 4 5pins; -7 8pins. (Support up to 60m Power over Ethernet)
- Eficiencia: >84.29%
- Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
OTROS
- Certificacion: CE FCC RoHS IP65
- Contenidos del Paquete: Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide
- Requisitos del Sistema: Microsoft Windows 98SE NT 2000 XP Vista or Windows 10 Windows 8 Windows 7 MAC OS NetWare UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome Safari and Firefox. IE browsers are not recommended.
- Ambiente: Operating Temperature: -40C70C (-40F158F) Storage Temperature: -40C70C (-40F158F) Operating Humidity: 10%90% non-condensing Storage Humidity: 5%95% non-condensing
