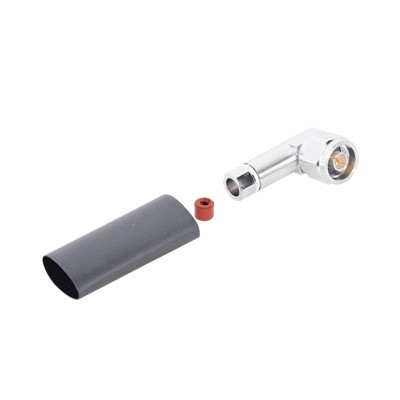

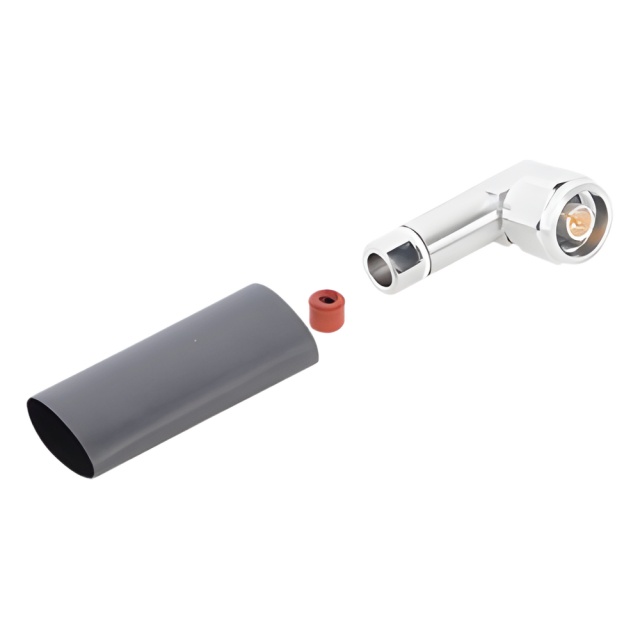

ANDREW / COMMSCOPE F1TNR-HC Conector N Macho en angulo recto para cable FSJ1-50A

ANDREW / COMMSCOPE
ANDREW / COMMSCOPE
Código producto - SKU F1TNR-HC
Este producto ya no está disponible en tu tienda.

Descripción

F1TNR-HC ANDREW / COMMSCOPE Conector N Macho en angulo recto para cable FSJ1-50A


General Specifications
Interface N Male
Body Style Right angle
Brand HELIAX®
Mounting Angle Right angle

Electrical Specifications
Connector Impedance 50 ohm
Operating Frequency Band 0 – 6000 MHz
Cable Impedance 50 ohm
3rd Order IMD typical 112
dBm 910 MHz
3rd Order IMD Test Method Two 43 dBm carriers
RF Operating Voltage maximum (vrms) 565.00 V
dc Test Voltage 1600 V
Outer Contact Resistance maximum 0.25 mOhm
Inner Contact Resistance maximum 1.00 mOhm
Insulation Resistance minimum 5000 MOhm
Average Power 0.4 kW 900 MHz
Peak Power maximum 6.40 kW
Shielding Effectiveness 110
dB


29-09-2022 11:45:42 SSN2

Detalles

SKU
F1TNR-HC
Categorías
Peso
0.09
Fabricante
