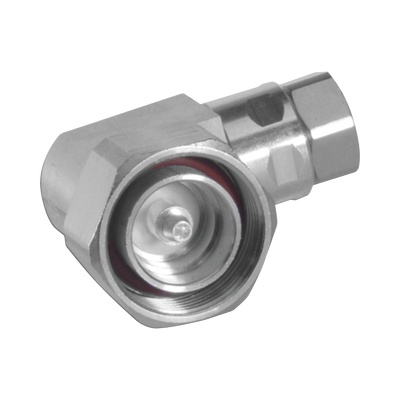

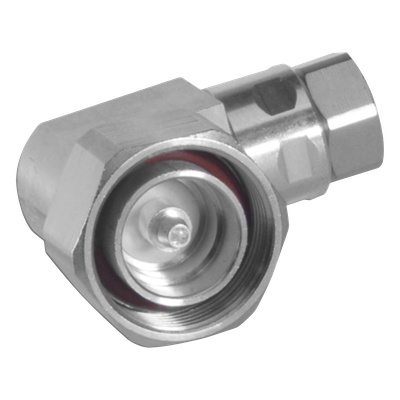

ANDREW / COMMSCOPE F4DR-C Conector DIN 7-16 Macho De Angulo Recto Para Cable FSJ450B
Descripción
F4DR-C ANDREW / COMMSCOPE Conector DIN 7-16 Macho De Angulo Recto Para Cable FSJ450B
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 7500 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD typical | -120 dBm 910 MHz |
| 3rd Order IMD Test Method | Two 43 dBm carriers |
| RF Operating Voltage maximum (vrms) | 884.00 V |
| dc Test Voltage | 2500 V |
| Outer Contact Resistance maximum | 1.50 mOhm |
| Inner Contact Resistance maximum | 0.80 mOhm |
| Insulation Resistance minimum | 5000 MOhm |
| Average Power | 1.0 kW 900 MHz |
| Peak Power maximum | 15.60 kW |
Insertion Loss typical  | 0.05 dB |
| Shielding Effectiveness | -110 dB |
