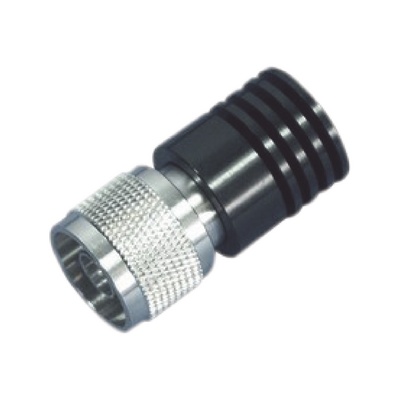

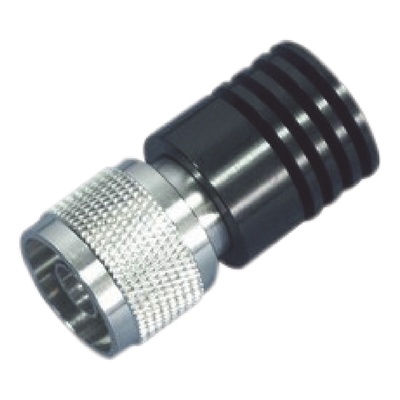

COMMSCOPE (ANDREW) T-2-UW-NM Carga Terminal Fantasma de 50 Ohm 2 Watt de 0 a 6000 MHz.
Descripción
T-2-UW-NM COMMSCOPE (ANDREW) Carga Terminal Fantasma de 50 Ohm 2 Watt de 0 a 6000 MHz.
Carga Terminal Fantasma de 50 Ohm 2 Watt de 0 a 6000 MHz.
General Specifications
| Device Type | Termination Load |
| Application | Indoor/Outdoor |
| Color | Black |
| Inner Contact Plating | Silver |
| Interface | N Male |
| Outer Contact Plating | Trimetal |
Electrical Specifications
| Average Power at Temperature | 1.7 W 60 °C |
| Average Power maximum | 2 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 0 – 6000 MHz |
| VSWR | 1.15 |
